Model Year 2020 |
Sportster
|

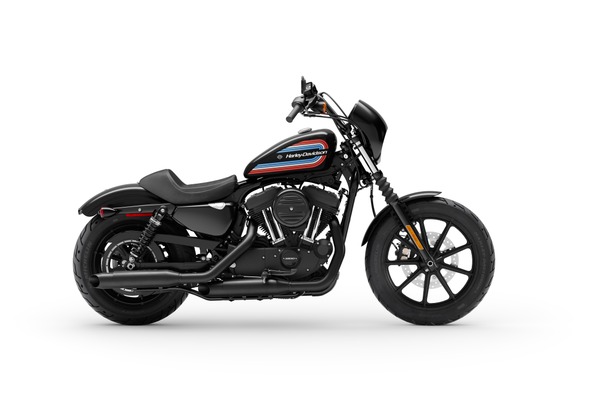

Iron 1200™
In Brief
The Iron 1200™ starts with the 1200cc Evolution® engine that gives loads of famous Sportster® torque. It’s got a throwback look that goes right to the roots of Sportster motorcycle, thanks to 70’s-inspired tank graphics. It also features a low-slung Café solo seat, mid-mount controls, and mini ape hanger handlebars for an aggressive, two-fists-in-the-wind riding position.
Specifications
Download Specifications
Download Specifications
DIMENSIONS
| Length | 86.6 in. (2,200 mm) |
| Seat Height | 28.9 in. (735 mm) |
| Fuel Capacity | 3.3 gal. (12.5 L) |
| Dry weight | 547 lb. (248 kg) |
POWERTRAIN
| Engine | Air-cooled, Evolution® |
| Displacement | 73.4 cu. in. (1,202 cc) |
| Bore | 3.5 in. (88.9 mm) |
| Stroke | 3.8 in. (96.8 mm) |
| Engine Torque | 73 ft. lb. (99 Nm) |
| Transmission | 5-speed |
WHEELS / TIRES
| Wheels | Black, 9-Spoke |
| Tires Front | 100/90B19 57H |
| Tires Rear | 150/80B16 77H |
