Model Year 2026 |
Cruiser
|
Deadwood™
In Brief

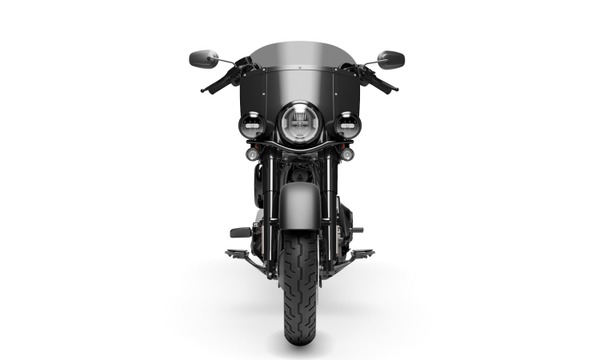

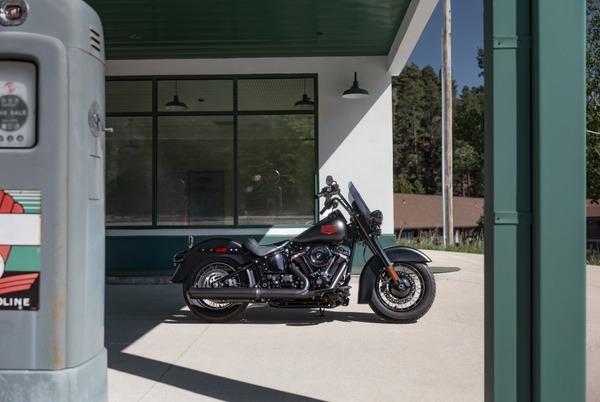

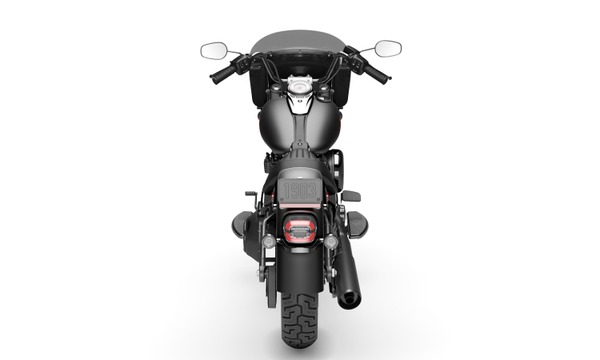

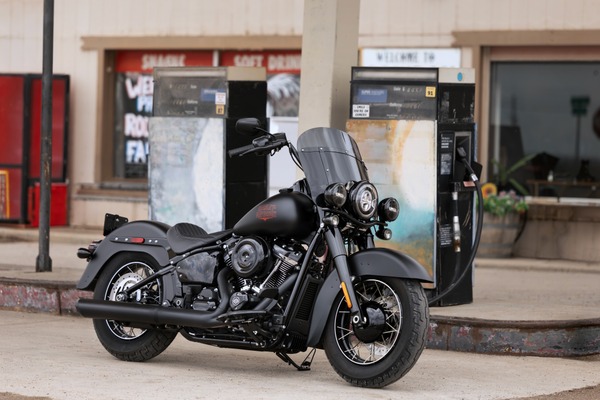

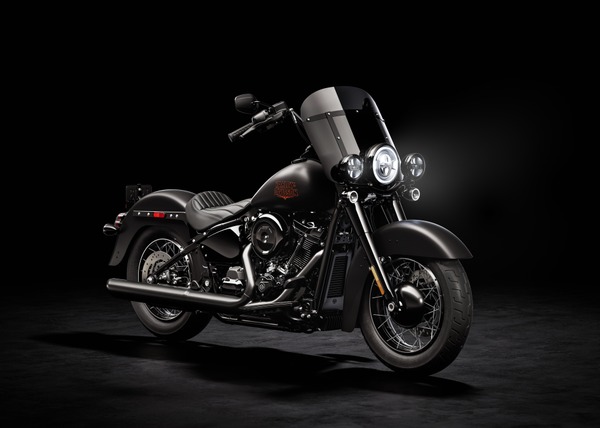

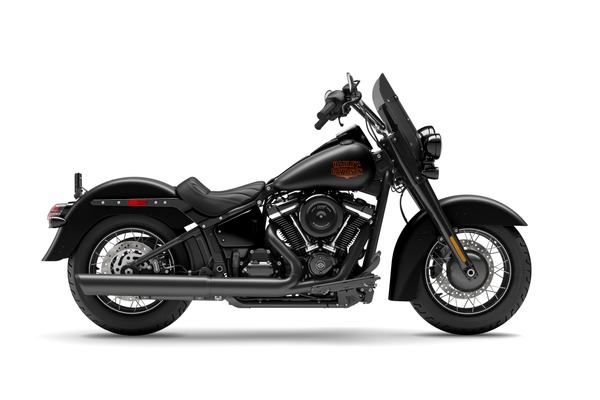

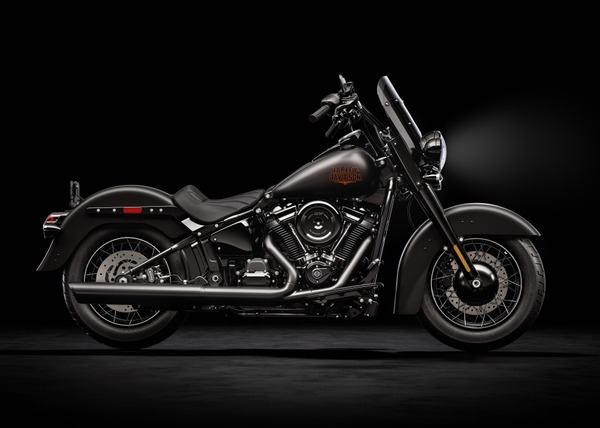

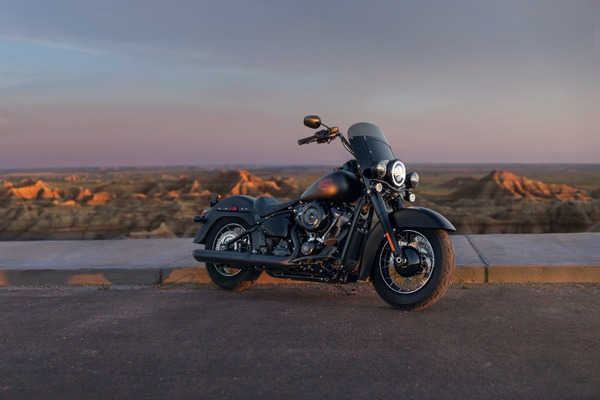

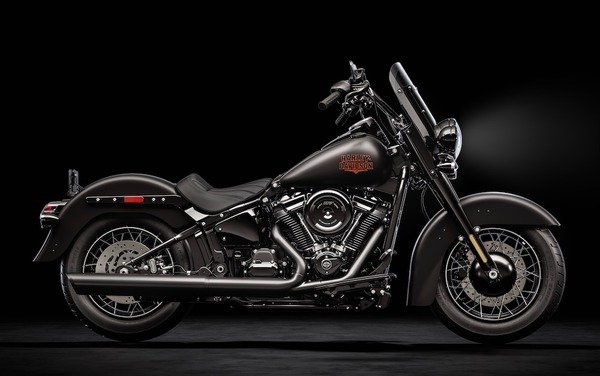

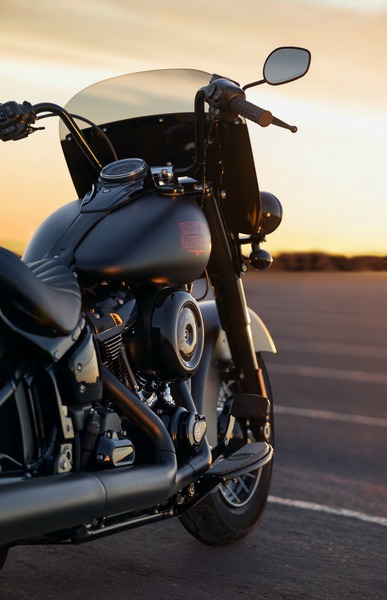

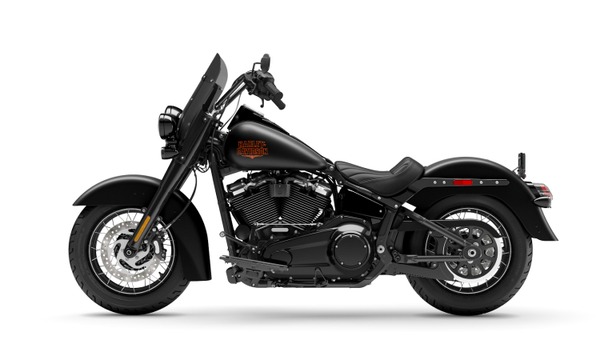

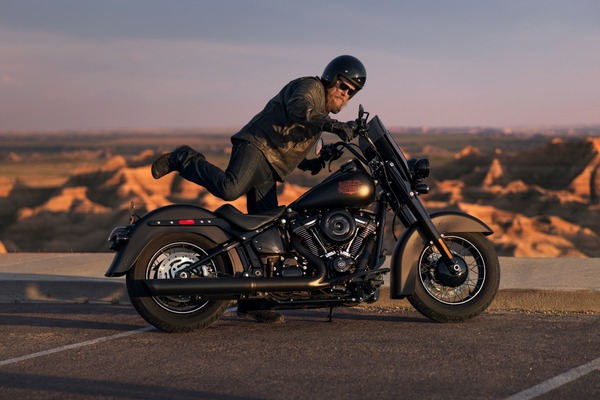

Inspired by Sturgis and the Black Hills with Milwaukee-Eight® 117 power and attitude. Denim Black paint, black laced wheels, smoked windshield, and a slammed silhouette. One of the darkest Harley-Davidson® motorcycles we've ever built. Meet Deadwood™. Blacked-out from front to back with Milwaukee-Eight® 117 power and modern handling. Five-gallon tank, modern Softail® performance, and the spirit of the Black Hills.
Specifications
Download Specifications
Download Specifications
| Dimensions | FLHD Deadwood™ | |
| Length (*Cert) | 94.9 in. (2,410 mm) | |
| Overall Width (*Cert) | 36.6 in. (930 mm) | |
| Overall Height (*Cert) | 50 in. (1,271 mm) | |
| Seat Height, Laden | 25.5 in. (648 mm) | 2 |
| Seat Height, Laden (Low seat position) | ||
| Seat Height, Laden (High seat position) | ||
| Seat Height, Laden (Low seat position with optional ARH suspension) | ||
| Seat Height, Laden (High seat position with optional ARH suspension) | ||
| Seat Height, Unladen (*Cert) | 26.5 in. (673 mm) | |
| Seat Height, Unladen (Low seat position) | ||
| Seat Height, Unladen (High seat position) | ||
| Seat Height, Unladen (Low seat position with optional ARH suspension) | ||
| Seat Height, Unladen (High seat position with optional ARH suspension) | ||
| Static Ground Clearance (*Cert) | 4.7 in. (120 mm) | |
| Static Ground Clearance without ARH (*Cert) | ||
| Static Ground Clearance with ARH (*Cert) | ||
| Dynamic Ground Clearance (with optional suspension) | ||
| Rake (steering head) (deg) | 30 | |
| Fork Angle (deg) | 30 | |
| Trail | 5.8 in. (147 mm) | |
| Wheelbase (*Cert) | 64.2 in. (1,630 mm) | |
| Tires, Type | Dunlop® Harley-Davidson Series, bias blackwall front and rear | |
| Tires, Front Model | D401F | |
| Tires, Front Specification | 130/90B16,73H,BW | |
| Tires, Rear Model | D401T | |
| Tires, Rear Specification | 150/80B16,77H,BW | |
| Fuel Capacity | 5 gal. (18.9 l) | |
| Reserve Fuel Capacity, Fuel Injection (warning light) | 1 gal. (3.8 l) | |
| Oil Capacity (w/filter) | 5 qt. (4.7 l) | |
| Transmission Capacity | 1 qt. (.95 l ) | |
| Primary Chain Case Capacity | 1.25 qt. (1.18 l ) | |
| Coolant Capacity | N/A | |
| Weight, As Shipped (*Cert) | 657 lb. (298 kg) | |
| Weight, In Running Order (*Cert) | 686 lb. (311 kg) | |
| Gross Vehicle Weight Rating (*Cert) | 1,160 lb. (526 kg) | |
| Gross Axle Weight Rating, Front (*Cert) | 450 lb. (204 kg) | |
| Gross Axle Weight Rating, Rear (*Cert) | 730 lb. (331 kg) | |
| Luggage Capacity -Volume | N/A |
| Engine | FLHD Deadwood™ | |
| Engine | Milwaukee-Eight® 117 Classic | |
| Valves | Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder | |
| Bore (*Cert) | 4.075 in. (103.505 mm) | |
| Stroke (*Cert) | 4.5 in. (114.3 mm) | |
| Displacement (*Cert) | 117 cu in (1,917.279 cc) | |
| Compression Ratio (*Cert) | 10.3:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | 3 |
| Air Cleaner | 9 in. (229 mm) round, center bolt cover with washable fiberglass filter media | |
| Exhaust | 2-into-1; catalyst in header | |
| Lubrication System | Pressurized, dry-sump with oil cooler |
| Drivetrain | FLHD Deadwood™ | |
| Primary Drive (*Cert) | Chain, 34/46 ratio | |
| Final Drive (*Cert) | Belt, 32/66 ratio | |
| Clutch | Mechanical, 10 plate wet, assist & conventional | |
| Transmission | 6-Speed Cruise Drive® | |
| Gear Ratios (overall) 1st (*Cert) | 9.311 | |
| Gear Ratios (overall) 2nd (*Cert) | 6.454 | |
| Gear Ratios (overall) 3rd (*Cert) | 4.793 | |
| Gear Ratios (overall) 4th (*Cert) | 3.882 | |
| Gear Ratios (overall) 5th (*Cert) | 3.307 | |
| Gear Ratios (overall) 6th (*Cert) | 2.79 |
| Chassis | FLHD Deadwood™ | |
| Frame | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports | |
| Swingarm | Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer | |
| Front Fork | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers | |
| Front Fork, Optional | ||
| Rear Shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment | |
| Rear Shocks, Optional | ||
| Wheels, Optional Style Type | N/A | 4 |
| Wheels, Front Type | Black Tubeless Laced w/ 36 Bright Spokes | 4 |
| Wheels, Front Diameter | 16 in. (406 mm) | |
| Wheels, Front Width | 3 in. (76 mm) | |
| Wheels, Rear Type | Black Tubeless Laced w/ 36 Bright Spokes | 4 |
| Wheels, Rear Diameter | 16 in. (406 mm) | |
| Wheels, Rear Width | 3 in. (76 mm) | |
| Brakes, Caliper Type | 4-piston fixed front and 2-piston floating rear | |
| Brakes, Rotor Type | Solid, uniform expansion rotors | |
| Brakes, Front Diameter | 11.8 in. (300 mm) | |
| Brakes, Front Thickness | 0.2 in. (5 mm) | |
| Brakes, Front is dual | No | |
| Brakes, Rear Diameter | 11.5 in. (292 mm) | |
| Brakes, Rear Thickness | 0.23 in. (5.8 mm) | |
| Brakes, Anti-Lock Braking System (ABS) | Standard | |
| Suspension Travel, Front | 5.1 in. (130 mm) | |
| Suspension Travel, Rear | 3.4 in. (86 mm) |
| Performance | FLHD Deadwood™ | |
| Engine Torque Testing Method (*Cert) | J1349 | |
| Engine Torque (*Cert) | 120 ft-lb (163 Nm) | 5 |
| Engine Torque (rpm) (*Cert) | 2500 | |
| Power (Hp/kW) (*Cert) | 98 HP / 73 kW @ 4600 rpm | |
| Lean Angle Testing Method | J1168 | |
| Lean Angle, Right (deg.) | 27 | |
| Lean Angle, Left (deg.) | 27 |
| Electric | FLHD Deadwood™ | |
| Battery | Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F | |
| Charging | Three-phase, 48 Amp system (364 Watts @13 Volts, 900 rpm, 624 Watts max power @ 13 Volts, 2000 rpm) | |
| Starting | 1.6 kW electric with solenoid shift starter motor engagement | |
| Lights (as per country regulation), Headlamp | All LED, low beam, high beam and signature position lamp | |
| Lights (as per country regulation), Tail/Stop | LED Buffett tail lamp | |
| Lights (as per country regulation), Front Signal Lights | LED Bullet Turn Signals | |
| Lights, Rear Turn Signals | LED bullet light bar | |

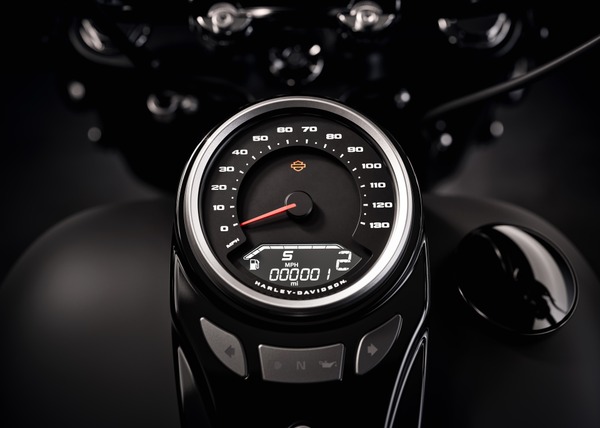

| Gauges | 5-inch (127 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication | |
| Auxiliary Lamps | LED fog | |
| Electric Power Outlet | USB C-Type , Output 5V at 2.4 Amp | |
| GPS System | N/A | |
| Reverse | N/A |
| Fuel Economy | FLHD Deadwood™ | |
| Fuel Economy Testing Method | Estimated City/Hwy | |
| Fuel Economy | 47 mpg (5 l/100 km) |
| Infotainment | FLHD Deadwood™ | |
| Infotainment system | N/A | |
| Screen Size | N/A | |
| Type | N/A | |
| Watts Per Channel | N/A | |
| Watts per Channel | N/A | |
| Speakers | N/A | |
| Speaker Size | N/A | |
| Headset Specifications (if equipped) | N/A | |
| AM | N/A | |
| FM | N/A | |
| MW | N/A | |
| LW | N/A | |
| Weather Band (WB) | N/A | |
| SD Card, Flash Drive and MP3 - via USB Connection | N/A | |
| Hands-free Mobile Phone - via Bluetooth | N/A | |
| Rider/Passenger Intercom | N/A | |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | N/A | |
| Text-to-Speech (TTS) Languages | N/A | |
| USB | N/A | |
| Phone Connectivity | N/A | |
| Bluetooth | N/A | |
| Navigation - via Bluetooth | N/A |
| Rider Safety Enhancements | FLHD Deadwood™ | |
| Anti-lock Brake System (ABS) | N/A | |
| Electronic Linked Braking (ELB) | N/A | |
| Traction Control System (TCS) | Included | |
| Drag-torque Slip Control System (DSCS) | Included | |
| Vehicle Hold Control (VHC) | N/A | |
| Tire Pressure Monitoring System (TPMS) | Included | |
| Wheel Lift Mitigation | N/A |
| Cornering Rider Safety Enhancements | FLHD Deadwood™ | |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | Included | |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | N/A | |
| Cornering Enhanced Traction Control System (C-TCS) | Included | |
| Cornering Drag-Torque Slip Control System (C-DSCS) | Included | |
| Enhanced Lift Mitigation | N/A |
| Warranty And Service | FLHD Deadwood™ | |
| Warranty | 24 months (unlimited mileage) | 6 |
| Service Interval | First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter | 7 |
| Footnotes | FLHD Deadwood™ | |
| 1 | Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. | |
| 2 | Measurement reflects 180 lb. (81.7 kg) operator weight. | |
| 3 | Recommended 91 octane or higher fuel (R+M)/2. | |
| 4 | Standard and optional wheels may vary by country and region. | |
| 5 | Values shown are nominal. Performance may vary by country and region. | |
| 6 | See motorcycle owner’s manual for complete details. | |
| 7 | Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details. |
